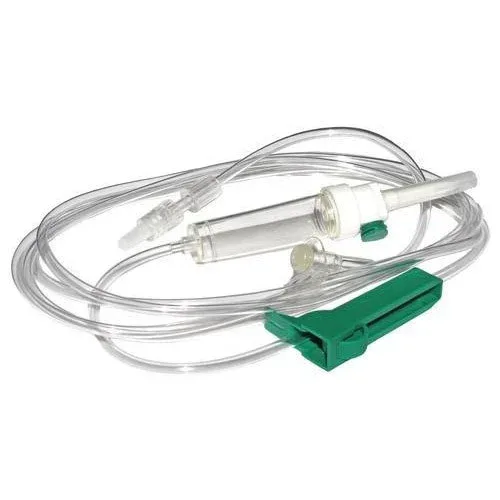

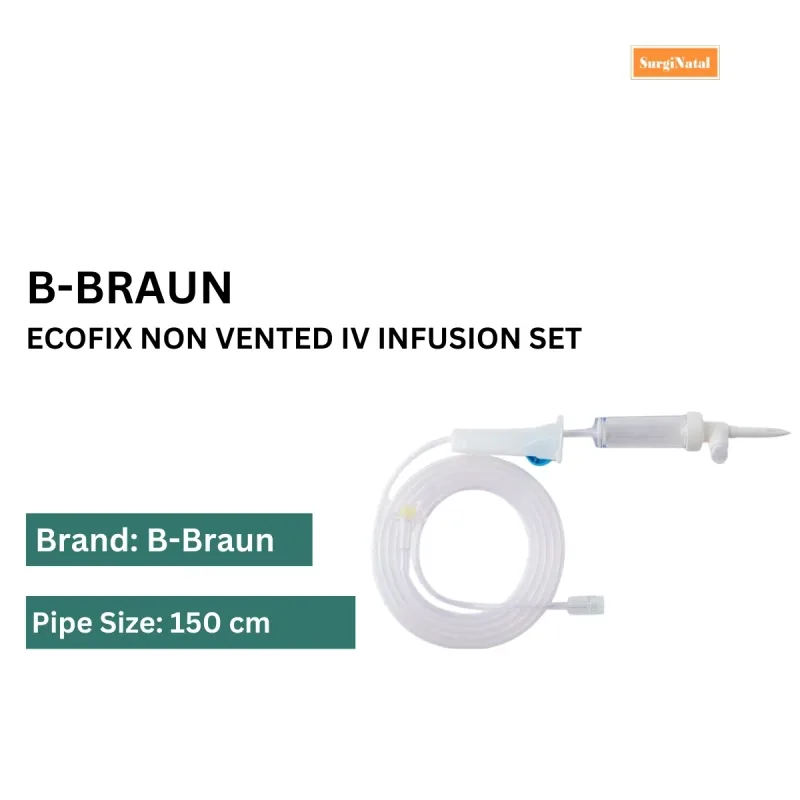

B Braun Ecofix Non Vented IV Infusion Set

The B Braun Ecofix Non Vented IV Infusion Set is a sterile medical device designed for the administration of intravenous fluids and medications. This set is specifically engineered for gravity-fed infusions, meaning it does not require an external pump to operate. Its non-vented configuration is a key design element, intended to prevent the ingress of ambient air into the fluid pathway, thereby enhancing patient safety by reducing the risk of air embolism.

The set is constructed from medical-grade materials, ensuring durability and biocompatibility for patient care. The overall length of the tubing is 150 cm, providing adequate reach for various clinical scenarios. The infusion set is supplied with a 21 G needle, suitable for connection to standard IV access points.

Each unit is designed for single use to maintain sterility and prevent cross-contamination.

This infusion set operates by creating a closed system for fluid delivery. Once the sterile spike is inserted into a compatible IV bag, and the drip chamber is filled, the roller clamp can be adjusted to control the rate at which the fluid flows through the kink-resistant tubing. The non-vented design is particularly beneficial when infusing from flexible or collapsible IV bags, as it eliminates the need for an air inlet, which could otherwise compromise sterility or lead to inaccurate flow rates.

The latex-free Y-site allows for the safe and convenient administration of additional medications during the infusion process without interrupting the primary fluid flow. The sharp, sterile spike is designed for easy and secure penetration of IV bag diaphragms.

The key features of the Ecofix Non Vented IV Infusion Set include its non-vented design for enhanced safety, a roller clamp for precise flow rate regulation, and a kink-resistant tubing that ensures uninterrupted fluid delivery. The inclusion of a latex-free Y-site provides a sterile port for secondary medication administration. The sharp, sterile spike facilitates easy connection to IV bags.

The set is manufactured from medical-grade plastic, ensuring reliability and patient safety. The absence of an air vent is a critical benefit for preventing air contamination within the infusion line. The set is designed for straightforward connection and operation, minimizing the potential for user error.

This infusion set is intended for use by qualified medical professionals, including nurses, physicians, and other healthcare providers, in various healthcare settings such as hospitals, clinics, and long-term care facilities. It can also be utilized by trained caregivers under the supervision of a healthcare professional. Patients receiving intravenous therapy may also encounter this device.

Typical applications include the administration of intravenous fluids, antibiotics, chemotherapy, pain management medications, and other therapeutic agents delivered via gravity infusion. It is particularly suitable for use with collapsible IV bags where an air vent is not required or desired.

Important usage notes include ensuring that the sterile seal of the packaging is intact before use. The device should not be used if the package is opened, damaged, or if protective caps are detached. The piercing spike must be fully inserted into the solution container.

The drip chamber should be filled to approximately half its capacity to establish a visible fluid level for monitoring. Air must be completely purged from the tubing before connecting to the patient's vascular access. The flow regulator should then be adjusted to achieve the prescribed infusion rate.

This device is for single use only and must be discarded appropriately after use to prevent the risk of infection or injury associated with the reuse of single-use medical devices.
